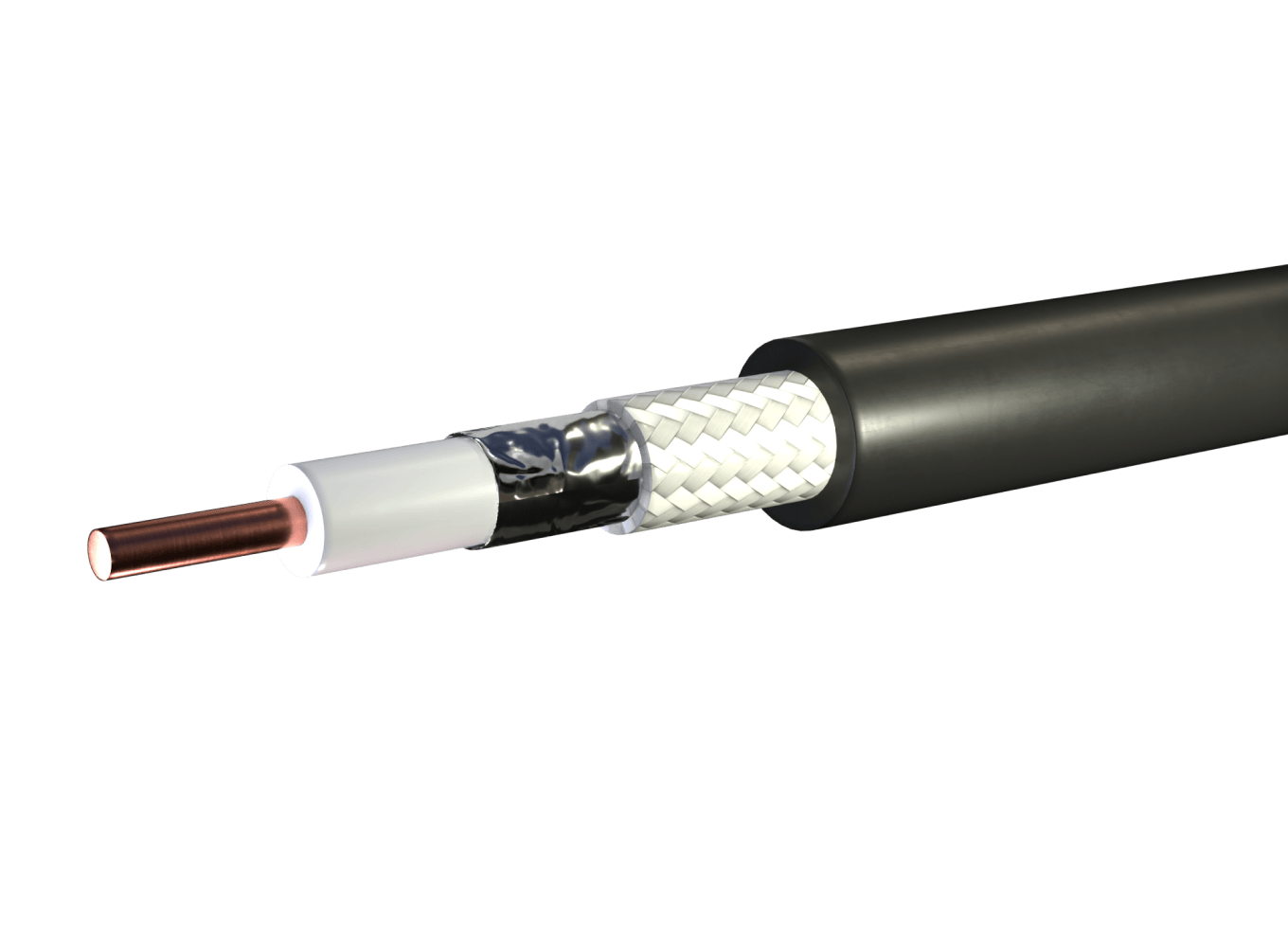

Coaxial Cables
Single conductor, solid copper, stranded copper or copper-plated steel wire dielectric insulated, metallic braid and/or a metallic tape. PVC or PE jacket.
Applications
Coaxial cables or coax cable are primarily used for telecommunication and other AV applications and microwave applications. They are designed to transmit high frequency with low losses.
Specifications & Compliances
- Center conductor material: copper-clad aluminum
- Dielectric material: foam PE
- Outer conductor material: aluminum
RG6-15
RG6, 18awg CCS conductor, aluminum foil shield & 60% aluminum braid.
RG6-1
RG6 direct burial, 18awg solid CCS conductor, 60% aluminum braid, CL2, polyethylene jacket.
RG11.1
RG11 direct burial, 14awg solid CCS conductor, 60% aluminum braid, CL2, polyethylene jacket.
